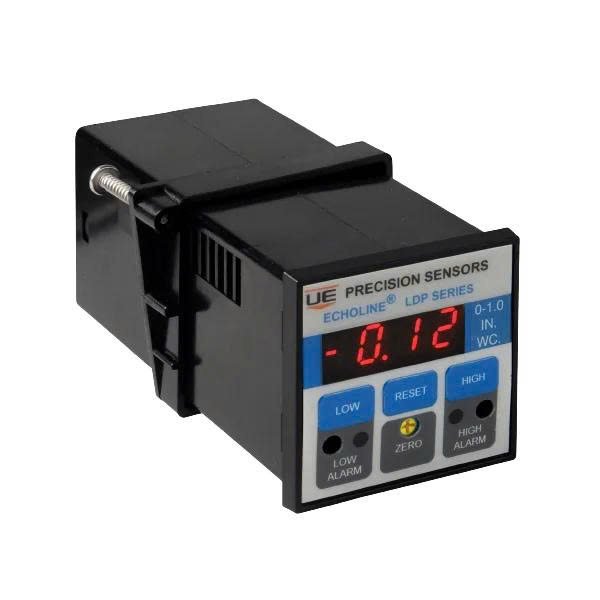

LDP ECHOLINE® Series Low Pressure Monitor -

LDP ECHOLINE® was designed in cooperation with a leading semiconductor manufacturer to provide state-of-the-art low pressure monitoring of gas cabinet exhaust systems. “ECHO” (Electronic Circuit Health Output) diagnostics alert the user to loss of external power or internal electronics failure. LDP ECHOLINE’s® unique Maintenance Mode option prevents false trips during ventilation system balancing.
LDP ECHOLINE® Corrosive Media incorporates stainless steel sensor technology into ECHOLINE’s® LDP Series allowing for low pressure monitoring of corrosive media systems while maintaining ECHOLINE’s® display, switching, analog output, and “ECHO” functions. This improvement allows the unit to be used in applications that previously could not be monitored with the ECHOLINE® LDP series.

Features

Introducing the Echoline Low Differential Pressure Monitor Video
UL991, UL508 Recognize Safety Rated
Conformance to S2-0200 and CE
Corrosive Media
Bright LED display, flash upon alarm
High and low alarm set points
“Maintenance Mode” option to prevent false trips during ventilation system balancing
Latching relay output (Option “M01” for non-latching design)
Auto-diagnostics ECHO circuit
Optional selectable units from inches WC to Pascal
100% Analog Design

Specifications *

	LDP	Corrosive Media LDP
Media	Clean Dry Air, Inert Gases,	Clean Dry Air, Inert Gases, Corrosive Media
Type	Field Adjustable	Field Adjustable
Range	0 to 0.1″, 0.5″, 1″, 2″, 5″ 10″ & 20″ WC 0 to 50, 100, 500, 1000 & 2000 Pa	0-1”, 5”, 10”, 20” 50” WC 0-250, 1000, 2000 Pa 0-10, 20 KP
Proof Pressure	± 14.5 psig ³ 1″ WC ± 80″ < 1″ WC	± 14.5 psig ³ 1″ WC ± 80″ < 1″ WC
Burst Pressure	20 psig	150 psig
Switching Response	1 Sec. to 30 Sec.	1 Sec. to 30 Sec.
Switching Output	1A @ 30 VDC	1A @ 30 VDC
Switch Point	Adjustable 5-95% of Range	Adjustable 5-95% of Range
Switch Repeatability	± 0.5% F.S.	± 1.5% F.S.
Input Power	12 to 24 VDC	12 to 24 VDC
Analog Output option	4 – 20 mA, 0-10 VDC	4 – 20 mA, 0-10 VDC
Status LED	Red/Green	Red/Green
Operating Temp. Range	0° to 40°C	0-55°C
Display Accuracy	1% F.S., 0° to 40°C	1.5% F.S., 0° to 40°C
Min. Operating Life	5 Million cycles	5 Million cycles
Approvals	UL508, UL991, CE	UL508, UL991, CE
Warranty	36 Months	18 Months
Media Connections	1/4″ tubing (push to seal) Barbed hose fitting	1/8” FNPT Pressure Conn.
